Since the previous research note · Earlier expectation not tested
Track continuity
Since the previous research note: Inside a working battery, aligned crystals shape cathode reactions and lithium growth
Previous expectation: Controlling insulating interfaces and lithium growth could make more stored energy usable over repeated operation in compact solid-state batteries.
What this study adds: This sodium-focused review broadens the track to electrolyte transport, electrode contact, operating temperature and material-resource choices. Its supplied evidence does not test the earlier lithium-cell interventions or their predicted gains.
What changed in this study
Sodium has an obvious attraction for battery research. The review Advancements in Solid-State Sodium-Based Batteries: A Comprehensive Review, published as an arXiv preprint on May 7, 2025, places sodium’s natural abundance alongside lithium’s much lower abundance in Earth’s crust. In the comparison presented by the review, sodium accounts for about 2.3% of the crust by weight, while lithium accounts for about 0.002%.
That is one reason sodium-based batteries could become useful for some forms of energy storage. But it is separate from another design ambition: replacing a conventional liquid electrolyte with a solid material that carries ions between the electrodes. A solid electrolyte may reduce flammability and avoid some harsh liquid handling concerns, but it must still conduct sodium ions, remain stable at its interfaces and accommodate the physical changes that occur during cycling.
The central difficulty is therefore not simply finding an abundant element. It is getting several different materials to perform incompatible-sounding jobs at the same time. The electrolyte must let sodium move quickly enough. The electrodes must remain in contact with it as their dimensions change. The whole combination must work at useful temperatures and rely on ingredients whose broader resource implications are understood.
Sodium’s advantage does not solve the cell problem
A battery does not benefit from sodium merely because sodium is plentiful. Sodium is the charge carrier, but the finished cell also depends on the electrolyte, electrodes, current-collecting components and interfaces between them. Each part brings its own chemical, mechanical and supply considerations.

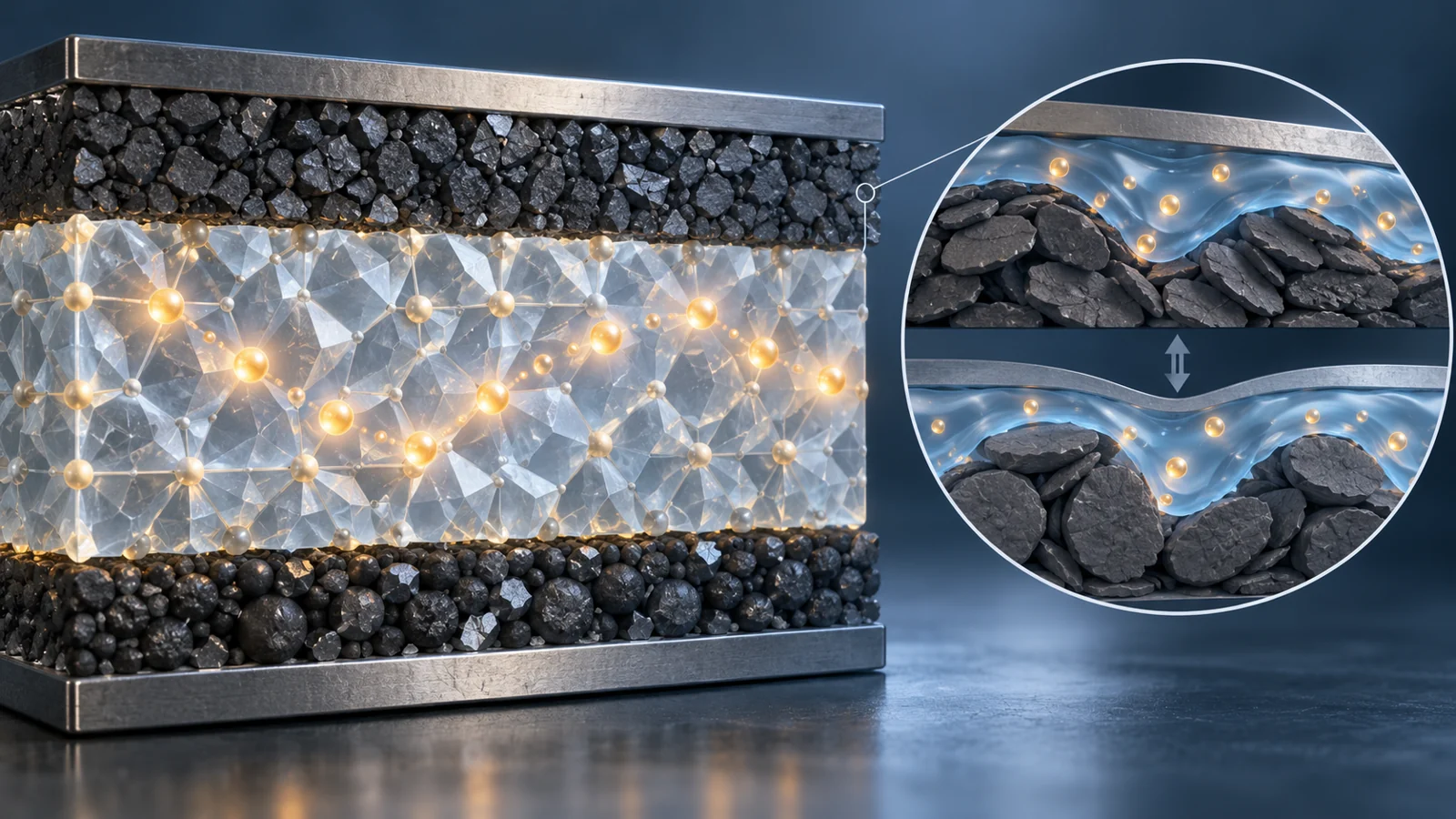

Solid-state designs add another constraint. In a liquid-electrolyte cell, the liquid can flow around particles and maintain contact across small gaps. A solid electrolyte has to provide a continuous physical route for ions while remaining attached to the surrounding electrode materials. The review consequently treats ionic conductivity and interface behavior as linked practical concerns rather than as independent scorecards.
This is why the promise of combining abundant sodium with a solid electrolyte should be read as a design opportunity, not as a completed solution. A battery can have a favorable charge carrier and still struggle with the path that charge must take through the cell.
Fast ion movement depends on connected sites
Inside a crystalline inorganic electrolyte, sodium ions do not travel through an open liquid. They hop between energetically stable sites in a rigid structure. Each hop has an associated barrier, and the important question is whether the available sites connect into a pathway that carries ions across the material efficiently.
A material can therefore have suitable sites without providing a useful transport network. If the migration landscape is poorly connected, sodium may move only slowly even when individual sites exist. Structure matters because it determines how those sites are arranged and how easily an ion can pass from one to the next.
The review describes at least 1 mS per centimeter near room temperature as a commonly targeted conductivity for competing with established organic liquid electrolytes and supporting practical charging and discharging rates. That figure is a useful reference point, but conductivity alone does not describe a working battery. A high-conductivity material must also remain compatible with the electrodes and stable across the cell’s operating conditions.
The review discusses several inorganic approaches, including sodium-based anti-perovskites and sulphide electrolytes, as well as ceramic systems with different structures and mechanical properties. Their transport mechanisms and stability tradeoffs differ. A result from one formulation is consequently not a universal ranking of all solid electrolytes or finished sodium cells.
Flexible polymers trade transport for contact
The contrast between crystalline inorganic electrolytes and polymers makes the design tension easier to see. A rigid ceramic can provide a defined crystalline route for sodium-ion hopping, but its stiffness can make intimate contact with irregular or changing electrode surfaces difficult. A polymer can conform more readily to those surfaces and help preserve contact as the cell is assembled.
Poly(ethylene oxide), or PEO, is the polymer electrolyte most extensively investigated in the discussion. It can form stable complexes with multiple salts, including sodium salts, which makes it an attractive host. Its ion movement, however, depends strongly on amorphous regions of the polymer. The review describes room-temperature conductivity for PEO-based systems as often below 10⁻⁴ S per centimeter, with operation frequently shifted above the polymer’s melting point, around 60–70°C, to improve ion mobility.
That difference is more than a materials footnote. A polymer that conforms well to an electrode may impose a temperature requirement that changes the practical operating envelope of the cell. Researchers have explored changing the salt, replacing PEO with other polymer matrices and adding liquid-compatible components that soften the polymer network or improve ion movement.
Those additions also change what “solid-state” means in a given experiment. Plasticized and gel polymer electrolytes can contain a liquid fraction, with the review distinguishing systems according to how much liquid they include. Such materials may offer useful flexibility and conductivity, but their results should not automatically be treated as equivalent to an entirely solid electrolyte with no liquid phase.
Cycling changes the contact between materials
Ion transport is only half of the physical problem. The electrode itself can expand, contract, crack or rearrange as sodium enters and leaves its active material. Even if the electrolyte remains a good conductor, a changing electrode surface can create gaps or increase resistance at the boundary.
The review describes several ways researchers try to manage this problem. Flexible electrolytes can conform to electrode surfaces. Interfacial coatings or adhesive materials can enlarge the area of contact and help preserve structural integrity. In one discussed example, polydopamine is used with a NASICON-based electrolyte and an iron disulfide cathode. Its flexibility and adhesion are presented as ways to tolerate volume changes, reduce gaps between electrolyte grains and maintain contact during cycling.
Electrode design can address the same problem from the other side. Alloy-based materials may provide substantial capacity but can undergo dramatic volume expansion. Embedding them in carbonaceous matrices, particularly when the material is nanostructured, is discussed as a way to control expansion and reduce pulverization. The purpose is not merely to improve a material’s isolated capacity. It is to keep the electrode physically connected to the electrolyte and conductive network over repeated operation.
These strategies show why a battery’s interface is an active part of its performance. The boundary is not a passive line between two finished materials; it changes as the cell charges and discharges.
The ingredients bring their own resource questions
Choosing sodium instead of lithium changes the abundance profile of the charge carrier, but it does not settle the resource profile of the complete battery. Electrolytes may depend on other elements selected for conductivity, chemical stability or mechanical performance. The review therefore considers the presence of rare or critical constituents alongside electrochemical metrics.
Its comparison identifies elements such as phosphorus, fluorine, zirconium and boron among the constituents that can matter when evaluating electrolyte sustainability. The point is not that any one of these materials automatically disqualifies a design. Rather, a formulation that performs well electrically may still deserve scrutiny because its less abundant ingredients could affect scaling, sourcing or environmental assessment.
The same broader view applies to electrodes. A sodium battery can be built around an abundant charge carrier while depending on electrode or electrolyte components with different supply constraints. Sodium abundance is meaningful, but it is only one term in the material equation.
This prevents a common shortcut in interpreting the field. Lower reliance on lithium may be valuable for some applications, yet it does not establish a finished-battery price, a quantified life-cycle benefit or freedom from other resource dependencies.
Impressive results need their construction and operating context
The review gathers examples from different electrolyte families, electrode formulations and operating conditions. That breadth is useful for showing the range of strategies under investigation, but it also means individual results are not automatically comparable as if they came from one standardized test.
A thin film may make it easier for ions to cross a short distance, but thin-film construction can limit the amount of active material loaded into the cell. The review specifically identifies mass loading as a scaling concern. A result obtained from a thin layer therefore answers a different question from the one posed by a thicker electrode intended to store more energy per device footprint.
Polymer-containing systems require a similar distinction. A flexible polymer electrolyte, a plasticized polymer and a gel containing a substantial liquid fraction may each solve a contact or conductivity problem in a different way. Their performance cannot be used interchangeably to describe every fully solid configuration.
Some examples in the review are striking within their own reported settings. One polyanionic cathode example is associated with at least 1,000 cycles and a capacity decay rate of about 0.0069% per cycle. That result illustrates what a selected formulation can achieve under its reported conditions; it does not establish a universal service life or rank all sodium solid-state designs. The practical meaning of any number depends on the materials, geometry, loading, temperature and test procedure that produced it.
The review’s value is therefore diagnostic as much as predictive. It shows where the pieces of a sodium solid-state cell can reinforce one another and where improving one property can expose a new constraint elsewhere.
What this could change
If researchers can combine sufficiently connected ion-transport pathways with durable electrode contact, suitable operating temperatures and scalable material choices, solid-state sodium batteries could give renewable-energy storage developers another option for storing electricity. The attraction would come from combining sodium’s broad natural availability with a cell architecture designed to reduce reliance on conventional liquid electrolytes for some storage needs.
That possibility remains conditional. Durable cells, useful electrode loading, manageable operating conditions and responsible choices of the complete material set would all have to align. The May 2025 review describes a field assembling those pieces across different approaches; it does not establish a commercial battery or a demonstrated performance advantage over lithium batteries. Its more immediate contribution is to make clear what must work together before sodium’s abundance can become a practical storage capability.
Key Sources
- Primary source: Advancements in Solid-State Sodium-Based Batteries: A Comprehensive Review
arXiv · Preprint · 2025-05-07
