Since the previous research note · Earlier expectation not tested
Track continuity
Since the previous research note: Related atomic frameworks may help lithium cross a battery boundary
Previous expectation: Structurally matched electrode and electrolyte materials could allow more electrode volume to store charge if their transport and contact stability proved adequate.
What this study adds: The current study reports a cerium-centered framework filler in a polymer electrolyte, including transport measurements at 60 °C and qualitative cycling results in lithium-metal cells. It addresses electrolyte composition rather than the earlier proposed electrode architecture.
What changed in this study
A battery electrolyte is the material that carries charged particles between electrodes. In this study, the electrolyte is a polymer rather than a free-flowing liquid, and the researchers change its composition by adding a cerium-centered metal-organic framework. The goal is not simply to add more material. It is to alter the chemical environment through which lithium ions travel.

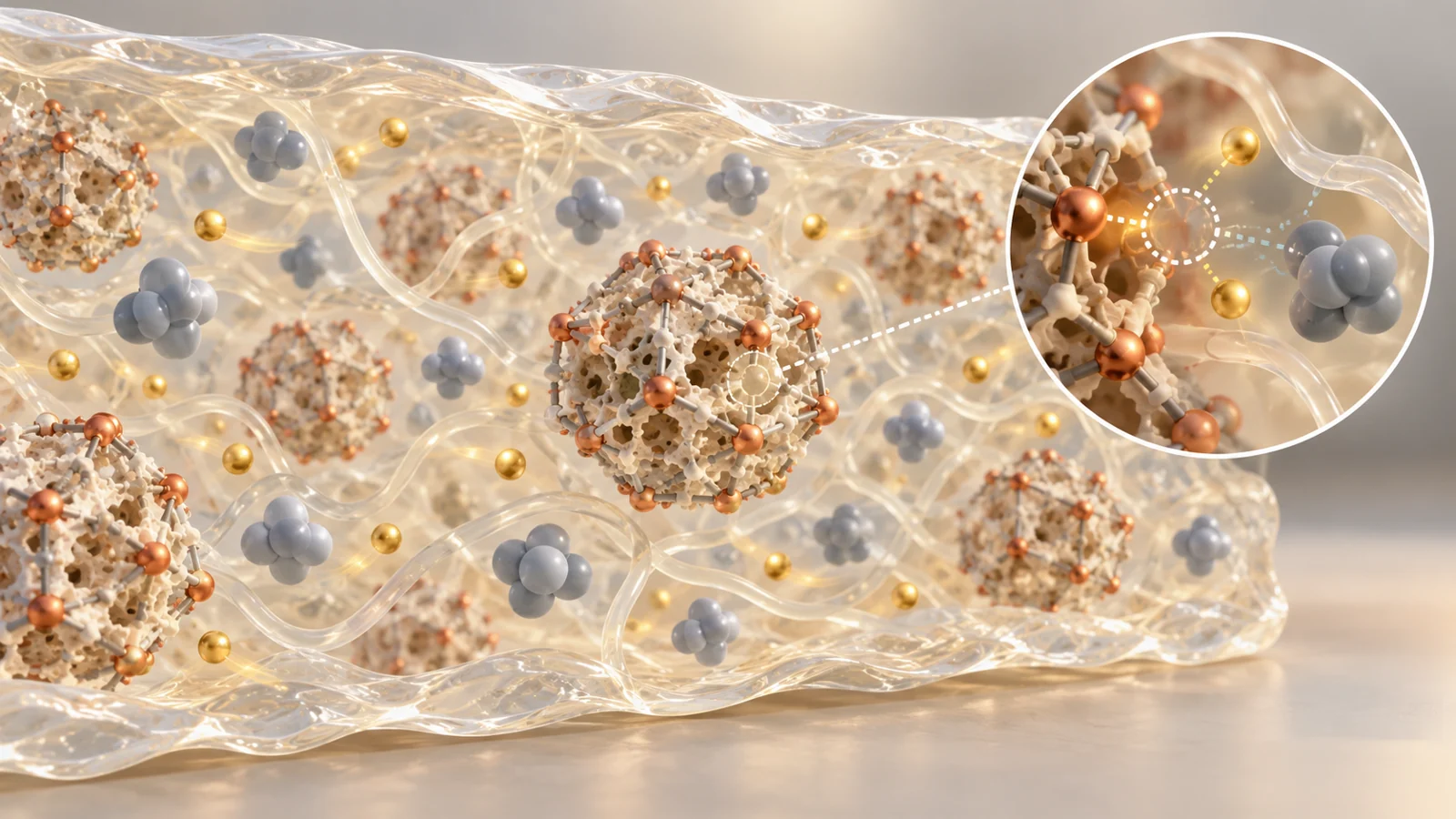

The resulting composite is called Ce-UiO@PEO. Its framework particles are dispersed through poly(ethylene oxide), or PEO, a polymer used here as the electrolyte matrix. The study asks a concrete materials question: can the metal sites in a framework filler make a polymer electrolyte more useful for lithium-metal batteries?
The material change starts inside the electrolyte
A metal-organic framework is a scaffold built from metal centers connected by organic linkers. The researchers prepare Ce-UiO-66 with Ce4+ centers and incorporate it into the PEO matrix. According to the study, the filler disperses uniformly through the polymer, creating a composite solid-state electrolyte rather than a separate framework layer.
That arrangement matters because the framework is not being tested as an electrode. Its intended role is to interact with the polymer and the lithium salt inside the electrolyte. The relevant design choice is therefore the chemistry of the filler and how it sits within the polymer, not just the amount of framework added.
Why the metal center matters
The authors select cerium partly because Ce4+ has a low-lying 4f orbital. They also point to unsaturated open metal sites and oxygen vacancies in the framework. These features are described as giving Ce-UiO-66 stronger Lewis acidity, a chemical property associated here with more effective interactions with PEO and with the anions from the lithium salt.
In plain terms, the framework is intended to act as a chemically active interface inside the polymer. Its open sites and defects provide places where the filler can interact with neighboring electrolyte components. The proposed result is a more favorable local environment for lithium-ion transport while the particles remain distributed through the PEO.
This is a different design strategy from changing the battery electrode itself. The study concentrates on the material between the electrodes and on the way a carefully chosen filler modifies that material.
Two measurements answer different questions
The optimized Ce-UiO@PEO electrolyte reaches an ionic conductivity of 4.20 × 10^-4 S cm^-1 at 60 °C. Ionic conductivity describes how readily charged species in the electrolyte contribute to current overall. It does not, by itself, say that lithium ions carry all or most of that current.
That is why the lithium-ion transference number is also important. The reported value is 0.39 at 60 °C, meaning the measurement assigns a defined share of the total ion transport to lithium ions rather than to the salt’s negative ions. A conductivity value and a transference number therefore describe related but different aspects of electrolyte behavior.
The temperature belongs beside both numbers. These are warm-condition measurements, not room-temperature results that can be assumed from the abstract. The authors describe the transport properties as highly comparable to those of other metal-organic-framework-containing PEO electrolytes, but the record here does not provide the comparator details needed to quantify an advantage across electrolyte families.
From material test to working cells
The study then moves beyond electrolyte transport measurements into two cell configurations. Lithium/lithium symmetric cells place the electrolyte between two lithium electrodes, bringing repeated contact with lithium metal into the test. Lithium/lithium iron phosphate full cells add a positive electrode and therefore represent a more complete battery arrangement.
For both configurations, the abstract reports improved cycling stability and rate performance. That extends the result from a material property to behavior observed while the electrolyte is operating inside cells. It also gives the cerium-based filler a more practical role than a conductivity measurement alone would establish.
The available record does not give cycle counts, capacity retention, electrode loading or detailed operating conditions. It therefore cannot show how long the cells lasted, how much active material they contained or how the reported rate results compare quantitatively with specific alternatives. The abstract also does not supply the detailed mechanistic validation needed to connect every cell-level result to the proposed interactions at the framework sites.
Those limits do not turn the finding into a failure. They define what can be concluded from the reported surface: cerium-centered framework particles can be incorporated into a PEO electrolyte, the resulting composite shows specified transport values at 60 °C, and the authors report favorable qualitative behavior in lithium-metal cell configurations.
The result should also remain separate from claims about commercial manufacturing, application-scale lifetime, battery-pack safety or device-level energy gains. It is an electrolyte-composition study, not a demonstration of a structurally matched electrode–electrolyte architecture.
What this could change
If the reported transport, mechanical and thermal properties persist across application-relevant conditions, and if the cycling behavior remains stable over longer and better-defined tests, this chemistry could broaden the options for polymer-based solid electrolytes in lithium-metal batteries. The authors propose that interactions at the cerium-centered framework sites improve lithium transport. The supplied evidence reports transport measurements and cell behavior, but does not establish how much those interactions contribute to the cell results.
The downstream possibility is a lithium-metal battery that uses a solid polymer electrolyte and maintains its performance through repeated charging and discharging over extended use. This filler could help make that possible only if its transport and stability hold at the intended operating temperature and under practical electrode loadings. The reported laboratory results do not yet demonstrate that capability, a pack-level safety improvement or a gain in usable energy.
Key Sources
- Primary source: Tailoring Ce-Centered Metal-Organic Frameworks for Fast Li + Transport in Composite Polymer Electrolyte.
DOI or Journal Page · Peer-Reviewed Paper · 2024-10-31
