Since the previous research note: How a battery material might correct uneven lithium growth
Previous expectation: Materials that sustain a corrective response to uneven lithium growth could help preserve interface contact and support more durable lithium-metal cells.
What this study adds: This source compares geometrically averaged and resolved simulations of solid-state battery cycling, identifying differences in predicted outcomes and examining parameter sensitivity. It contributes a separate milestone on the tools used to assess designs, rather than testing the proposed corrective interface response.
What changed in this study
A promising solid-state battery design exists first as a set of predicted behaviors. Before a new cell is built, computer models can help researchers ask how material properties, dimensions and operating conditions might affect its cycling. That role becomes especially important when the combinations being considered have not already been characterized experimentally.
An August 11, 2024 arXiv preprint examines a basic question behind those predictions. How much does the answer depend on whether a model represents the cell’s internal geometry explicitly or averages that geometry into a simpler layer?

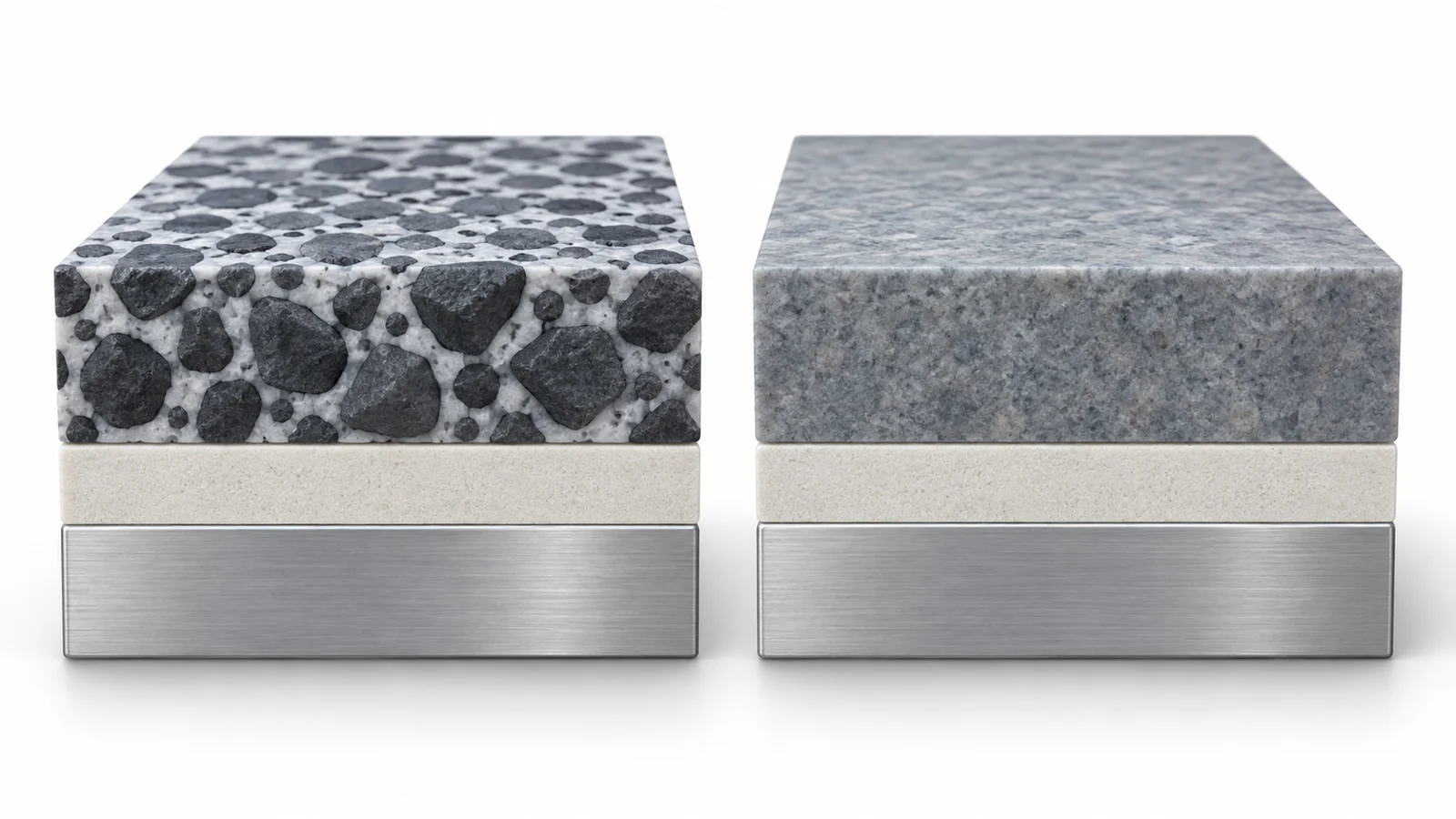

The study compares two physics-based descriptions of the same modeled solid-state battery. One resolves the microstructure in three dimensions, representing the arrangement of active-material particles and solid electrolyte within the modeled region. The other is a pseudo two-dimensional, or P2D, model. It preserves the broader battery layers while replacing the detailed internal arrangement with homogenized properties.
The distinction is therefore about representation, not a change from one battery chemistry to another. The target cell has a composite cathode containing NMC-622 active material and LPS solid electrolyte, an LPS separator and a lithium anode. Both model types are derived from the same physical principles. The resolved version is treated in the study as the more faithful representation because it makes fewer geometric simplifications, but that assumption is a reference for the comparison rather than a demonstration that it reproduces every feature of a physical cell.
A fixed cycle exposes a practical difference
The first comparison follows a discharge–charge–discharge sequence for one selected setup. The cell is cycled at a constant 0.25 C and an ambient temperature of 298 K. In the resolved simulation, the voltage limits are reached earlier than in the P2D simulation.
That timing changes the simulated cycling outcome. Once a voltage limit is reached, the modeled operation stops or changes direction, so reaching the limit sooner leaves less of the cycle available. The comparison associates the resolved case with reduced utilization and, consequently, lower available capacity in that setup.
It is useful to separate two related quantities here. Available capacity describes how much charge the simulated cell can deliver under the selected conditions. State of charge describes the remaining charge relative to the model’s defined capacity at a particular point. A model can therefore reach a stopping voltage with a different state of charge without that result meaning that a physical battery has universally lost a fixed percentage of capacity.
The point of the fixed-cycle example is not simply that two voltage curves fail to overlap. It shows why a geometric simplification can matter operationally: if the representation changes when a voltage boundary is reached, it can also change the simulated interpretation of how much of the cell has been used during the modeled cycle.
The larger test changes the question
A single setup cannot show whether the difference persists as the design inputs change. The preprint therefore evaluates both models with the same 150 randomly sampled combinations of parameters. For every sample, the models use matching input values, and the state of charge at the end of discharge is compared when the lower cell-voltage limit reaches 3.6 V.
This creates a more demanding test than asking whether two curves match for one chosen cell. Battery developers often need predictions for combinations of properties that have not yet been measured together. A useful simplified model would ideally preserve not only one output value, but also the way that output responds when the inputs vary.
Across the comparison, the reported difference in simulated end-of-discharge state of charge reaches as much as a factor of five. That is a statement about the value of a modeled quantity at the stopping point. It is not a universal fivefold error assigned to P2D models, and it is not a claim that one physical battery would deliver five times more or less capacity than another.
The study also examines sensitivity with Sobol indices. In plain language, these indices help separate how much of the variation in an output is associated with individual inputs from how much arises through interactions among inputs. First-order indices describe individual contributions, while higher-order terms capture combinations. The reported first- and second-order contributions nearly account for the total-order indices, so the authors do not need the computationally expensive third- and fourth-order calculations for that analysis.
The result shifts the reader’s question from “Which curve is closer?” to “Do the two model types identify the same influential changes across the design space?” For a particular design, the remaining question is whether averaging changes the prediction enough to affect the intended use of the model.
The reference model is part of the interpretation
A detailed geometry is not automatically physical truth. In this study, the resolved simulation supplies the comparison reference because it represents the microstructure explicitly and avoids the additional geometric averaging used by the P2D model. That makes it a useful benchmark for examining the consequences of simplification within the modeled system. It does not, by itself, validate the resolved simulation against a real cell.
The sampled parameter distributions also define the reach of the sensitivity conclusions. The models are tested over the values and combinations selected for the study, with the parameters treated as independent in the described analysis. A different range, correlation structure or material system could change which effects become important. The reported sensitivity behavior should therefore be read as a result for the explored design space, not as a complete map of all solid-state battery designs.
The authors perform a separate check on the selected simulated geometry. They compare alternative arrangements of active-material particles with almost identical porosity. The resulting differences are small relative to the differences between the resolved and P2D model types. That supports the assessment that the chosen lateral domain is adequate for this particular check. It does not establish that the same domain would be adequate for every particle arrangement, porosity, cell size or material combination.
These distinctions matter because model comparison can easily be mistaken for battery validation. The study tests how two mathematical representations behave under specified conditions. It does not demonstrate improved capacity, longer life, greater safety or manufacturing readiness in a physical solid-state cell. Nor does it test the earlier proposal that a material response could correct uneven lithium growth. That is a separate scientific question from whether internal geometry is being represented finely enough in a simulation.
What this could change
If the predictions are validated in physical cells, combining these models could help researchers identify solid-state battery designs that deliver more of their intended charge before reaching a voltage cutoff. An averaged model could screen candidate materials and geometries, while a geometry-resolved model could check where internal structure changes the predicted cycling behavior. The hoped-for downstream benefit would be greater usable capacity in the eventual cell; this comparison has not demonstrated that gain.
That would be a capability gain in the design process, not a battery-performance result by itself. The benefit depends on choosing a model that remains reliable for the intended designs, and on the resulting predictions being borne out in physical cells. Until those conditions are established, the practical lesson is narrower but still important: computational efficiency and geometric detail should be treated as linked parts of the prediction, especially when a design is being pushed into combinations that have not already been tested.
Key Sources
- Primary source: Anaysis of the validity of P2D models for solid-state batteries in a large parameter range
arXiv · Preprint · 2024-08-11
